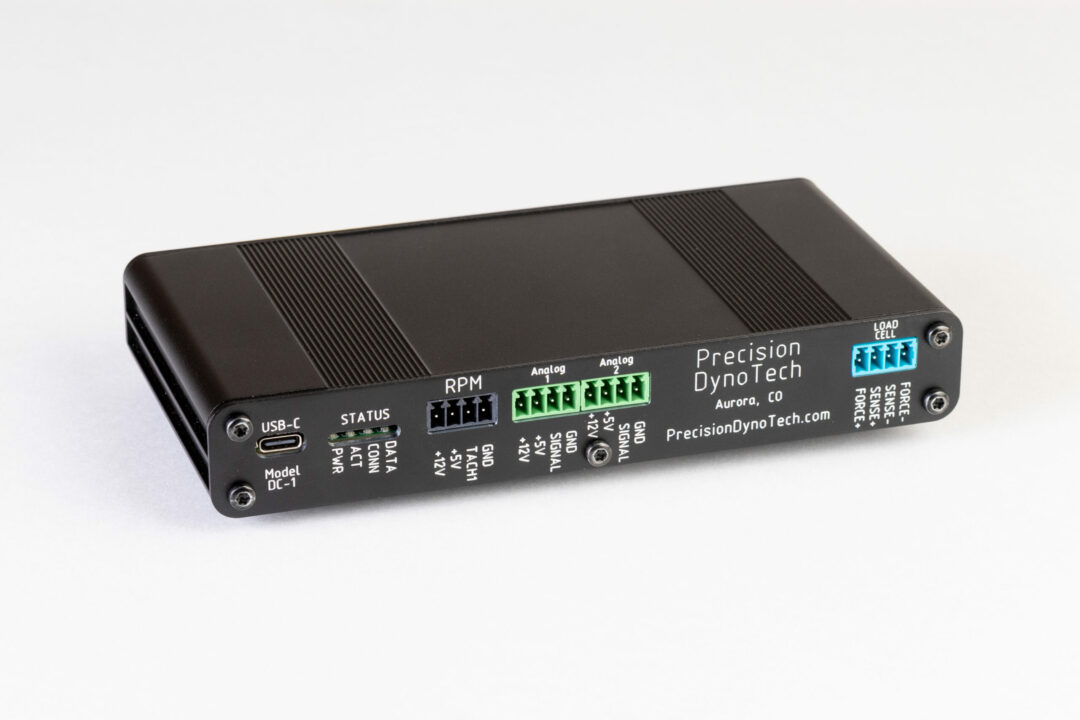

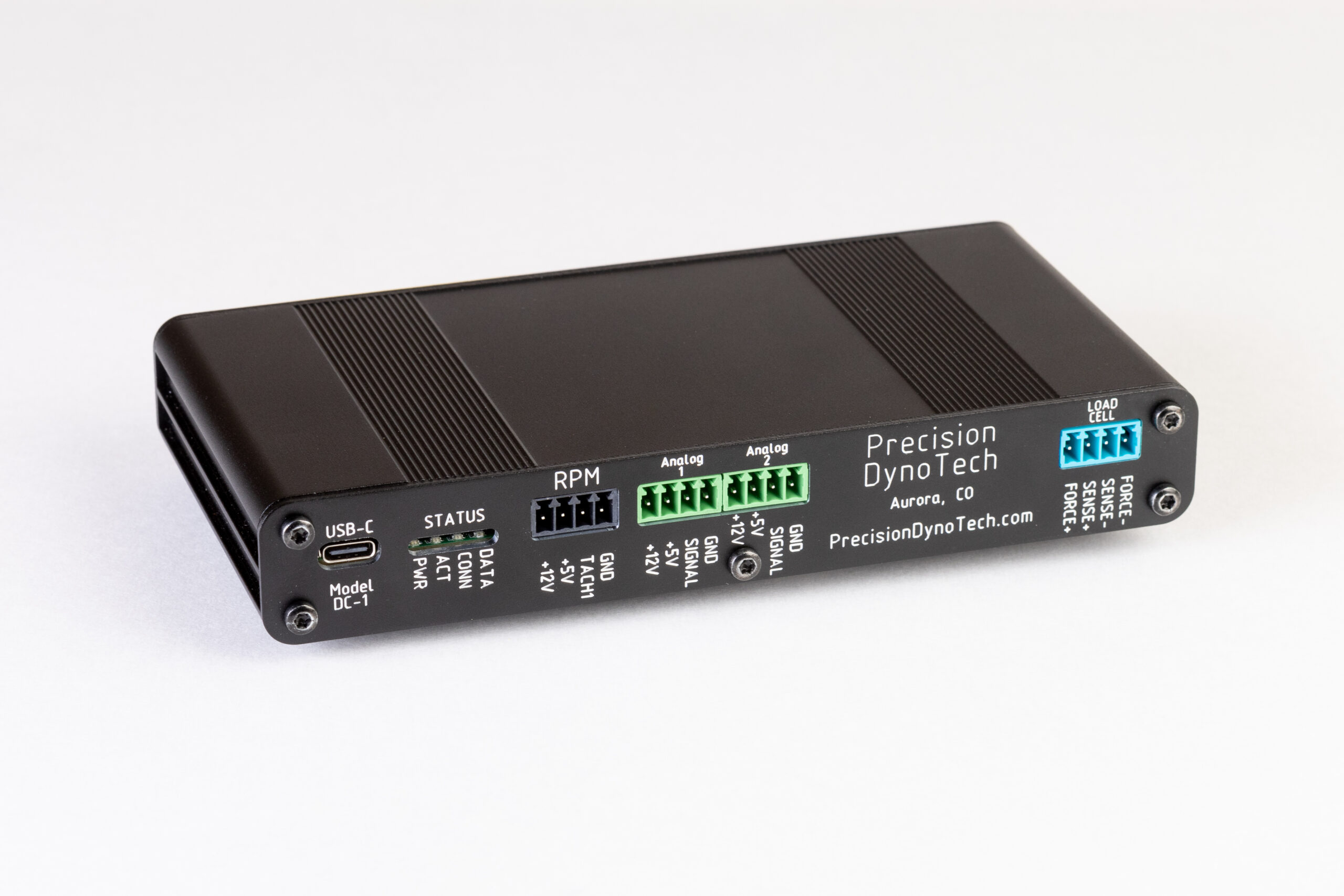

Our most basic dyno data acquisition system, the DC-1, is perfect for upgrading older and simpler dyno installations, such as those who want to upgrade from an old Stuska analog gauge or similar. We know there are plenty of setups that don’t need all the bells and whistles like electronic brake control and excessive amounts of data channels, so that’s why we made this data system!
Features include the following:
- 1 RPM input
- Can use tachometer signals from points ignition systems, electronic ignition, IR photo sensors, or hall effect sensors

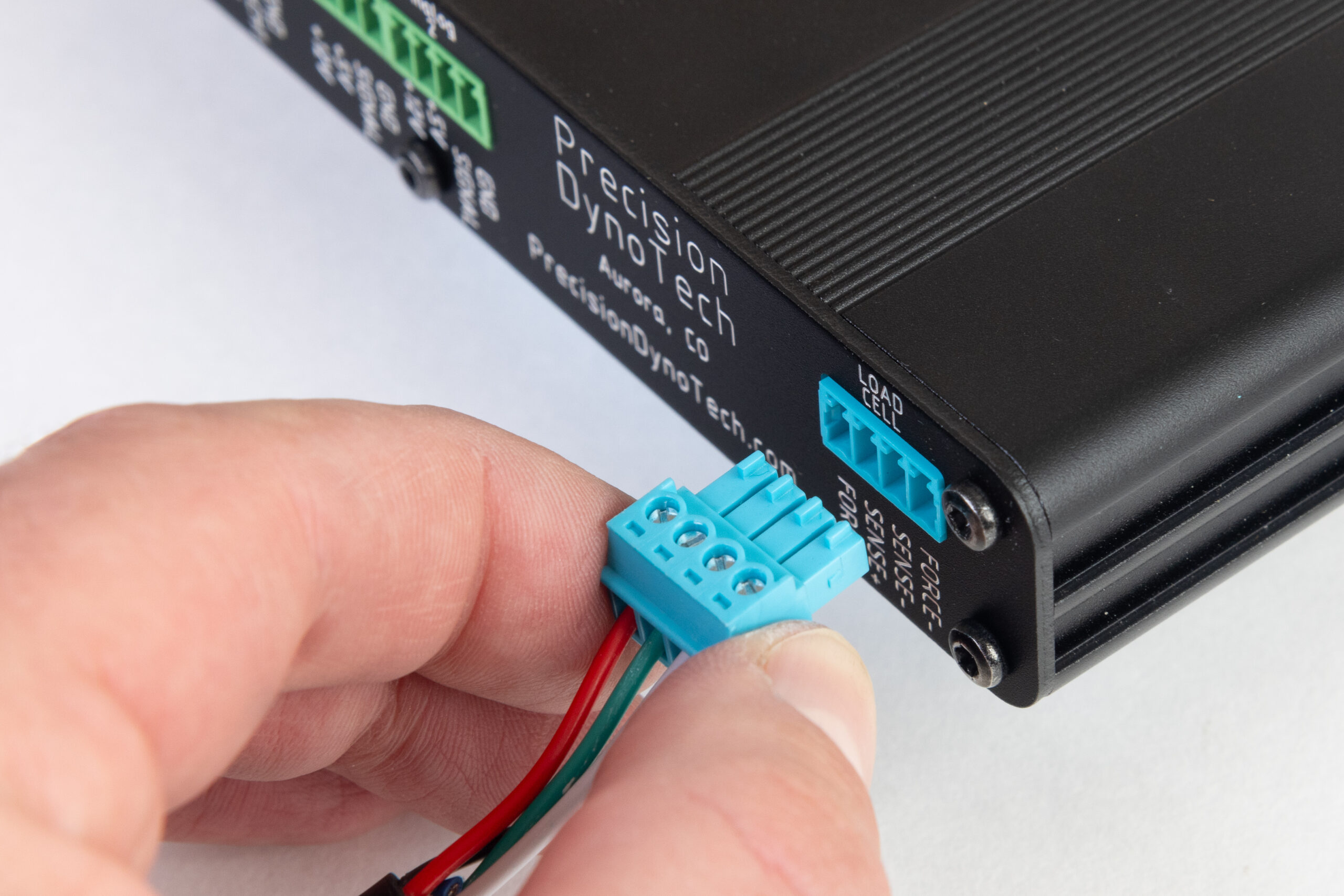

- 1 Load Cell Input
- For use with a wheatstone bridge type load cell (the most common S beam load cells)
- 24 bit ADC for high resolution data
- 2 analog inputs
- Use for pressure sensors, AFR signals, throttle position, raw voltages, and more
- Color coded connectors for easy installation
- Durable Anodized Aluminum Case

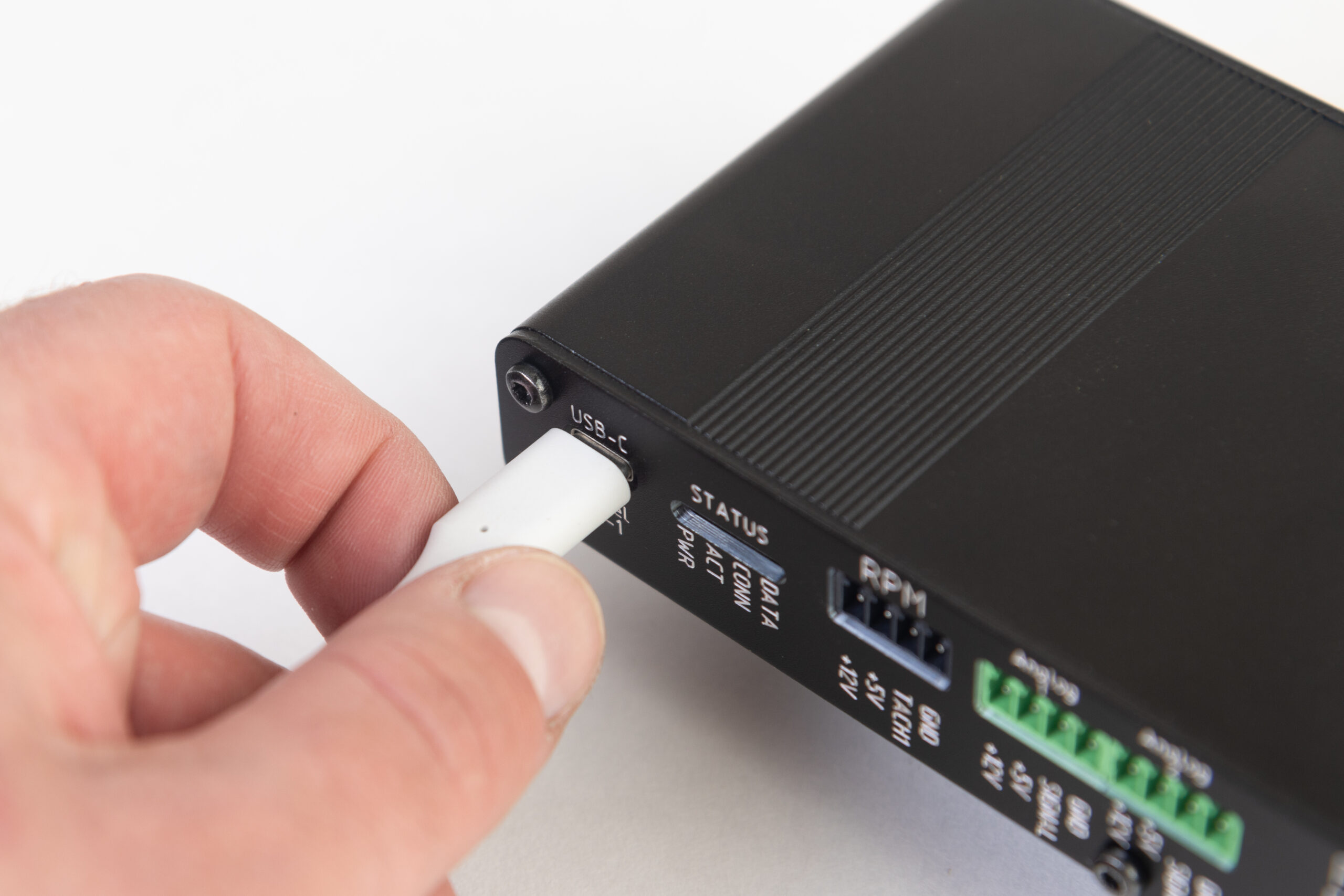

- USB-C connection to interface with a PC running Windows.
- Includes Precision DynoTech “RevBench” Software
- Correction factor calculations based on user input atmosphere settings
- STP, SAEJ1349, or Uncorrected
- Complete data logging of all channels
- Can start manual logging (user start and stop)
- Automatic logging based on starting and ending RPM values
- Data viewer to view all channels
- View data channels over time and over RPM
- Printing of saved tests
- Includes max power, torque, corrections, and user-defined notes
- Correction factor calculations based on user input atmosphere settings
