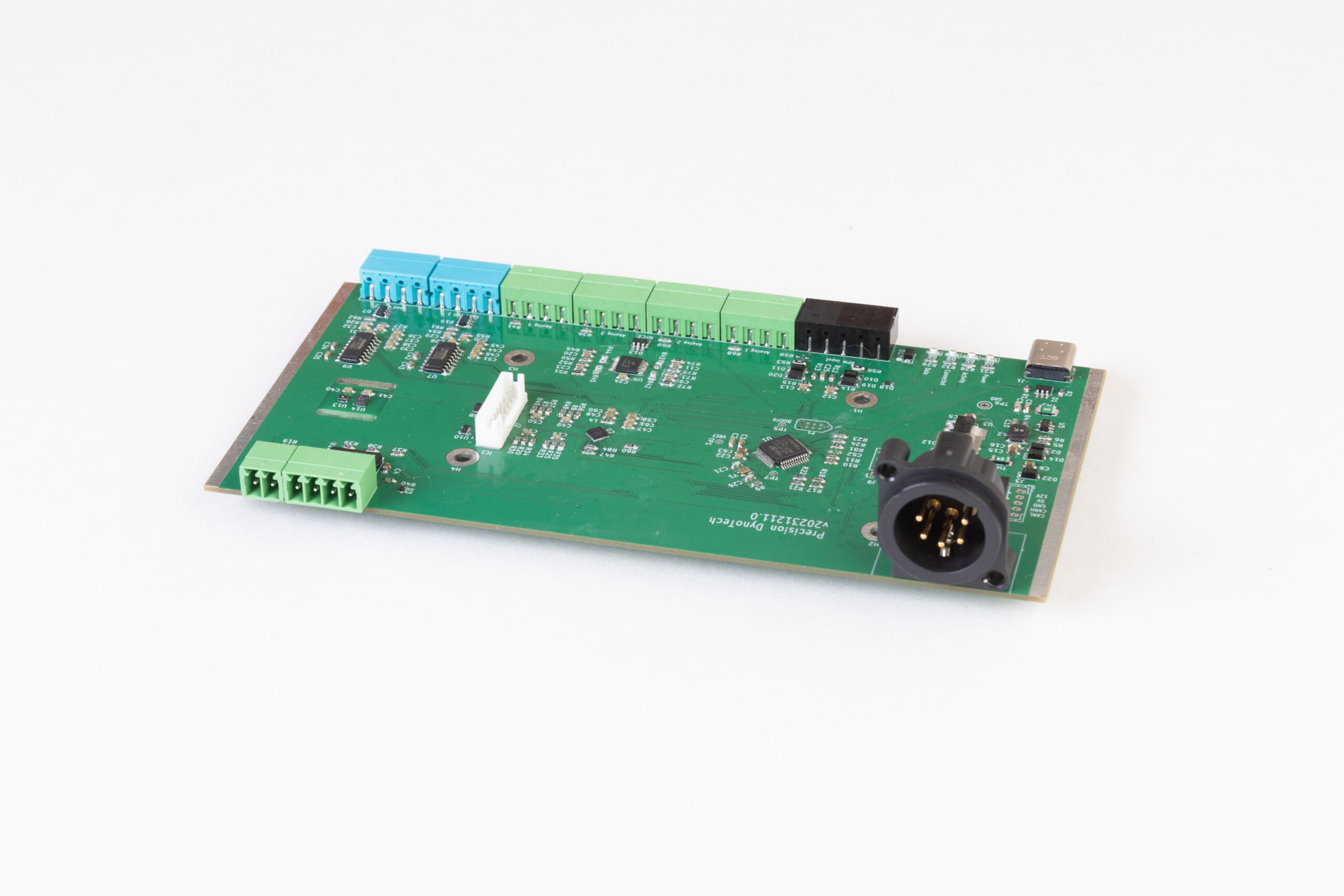

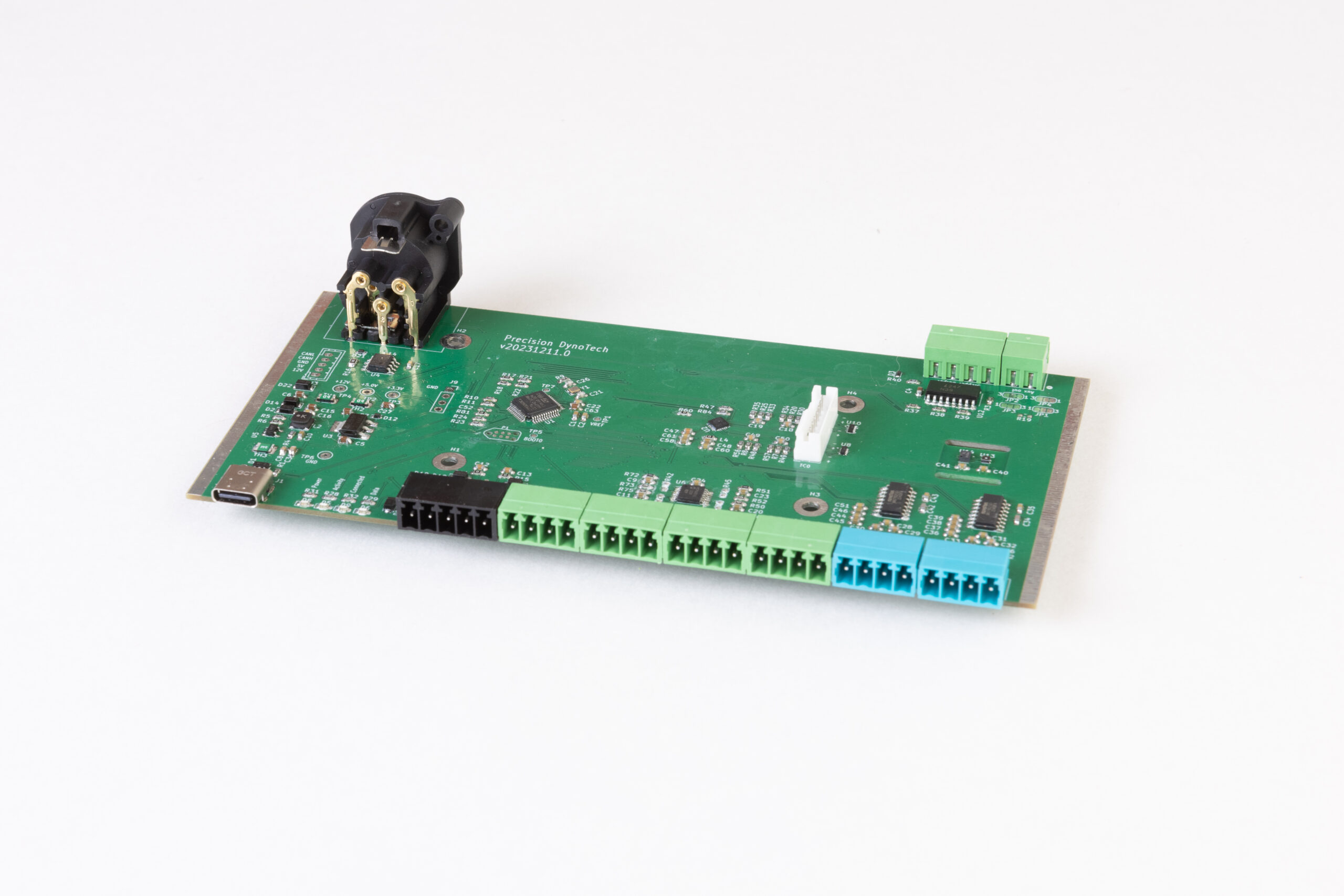

Our DC-3 data acquisition system takes what the DC-1 and DC-2 already have, and adds to it! Notable features include a stepper output for connecting to a stepper driver and motor for controlling a load valve.
An aux output is also capable of PWM output for controlling an eddy current brake power supply.
Features include the following:
- 2 RPM inputs
- Can use tachometer signals from points ignition systems, electronic ignition, IR photo sensors, or hall effect sensors
- 2 Load Cell Inputs
- For use with a wheatstone bridge type load cell (the most common S beam load cells)
- 24 bit ADC for high resolution data
- 4 analog inputs
- Use for pressure sensors, AFR signals, throttle position, raw voltages, and more
- 4 K-Type Thermocouple Inputs
- CAN Bus

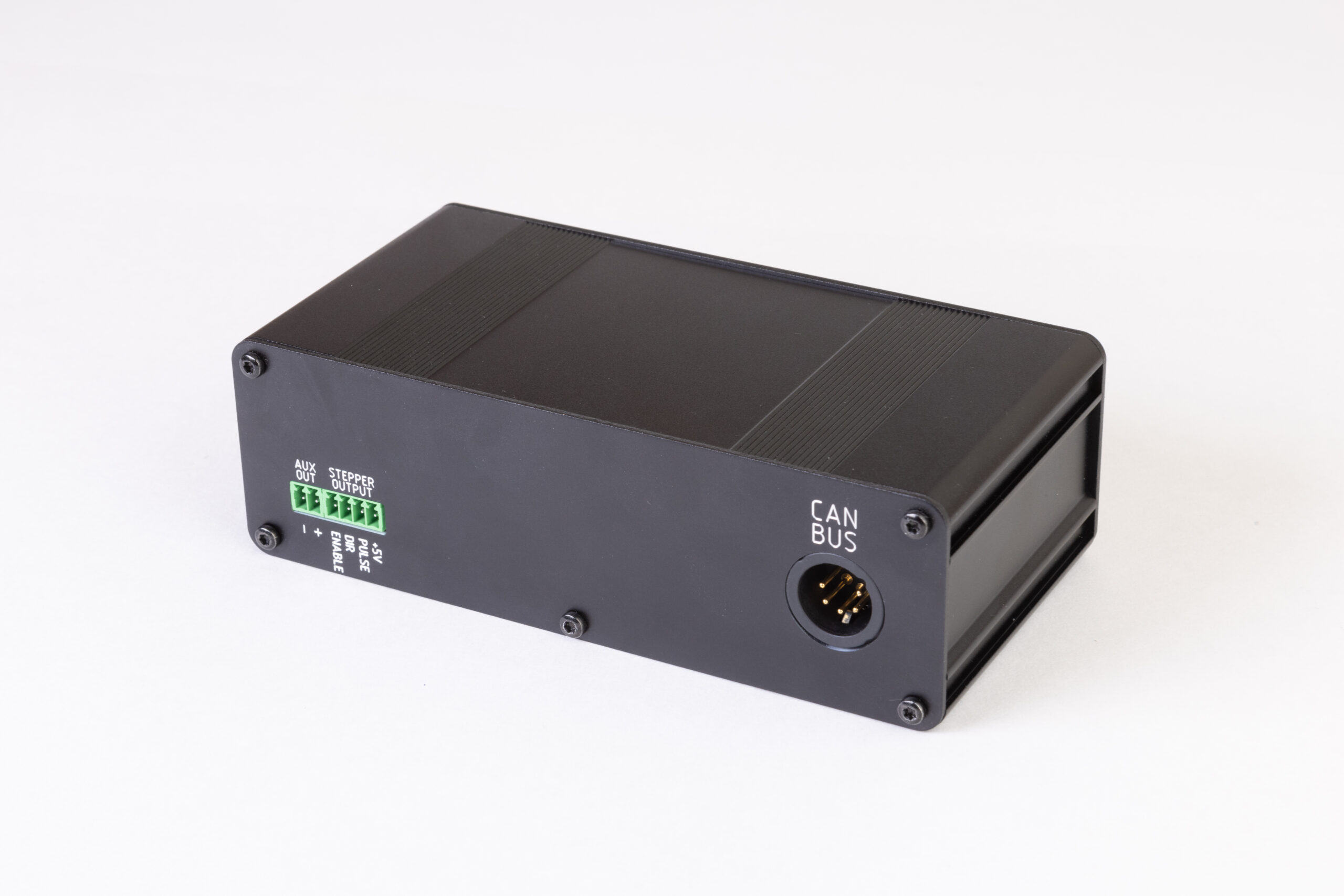

- Stepper Output
- AUX 0-5v output
- Built-In Weather Station: Air temperature, Barometric Pressure, Humidity

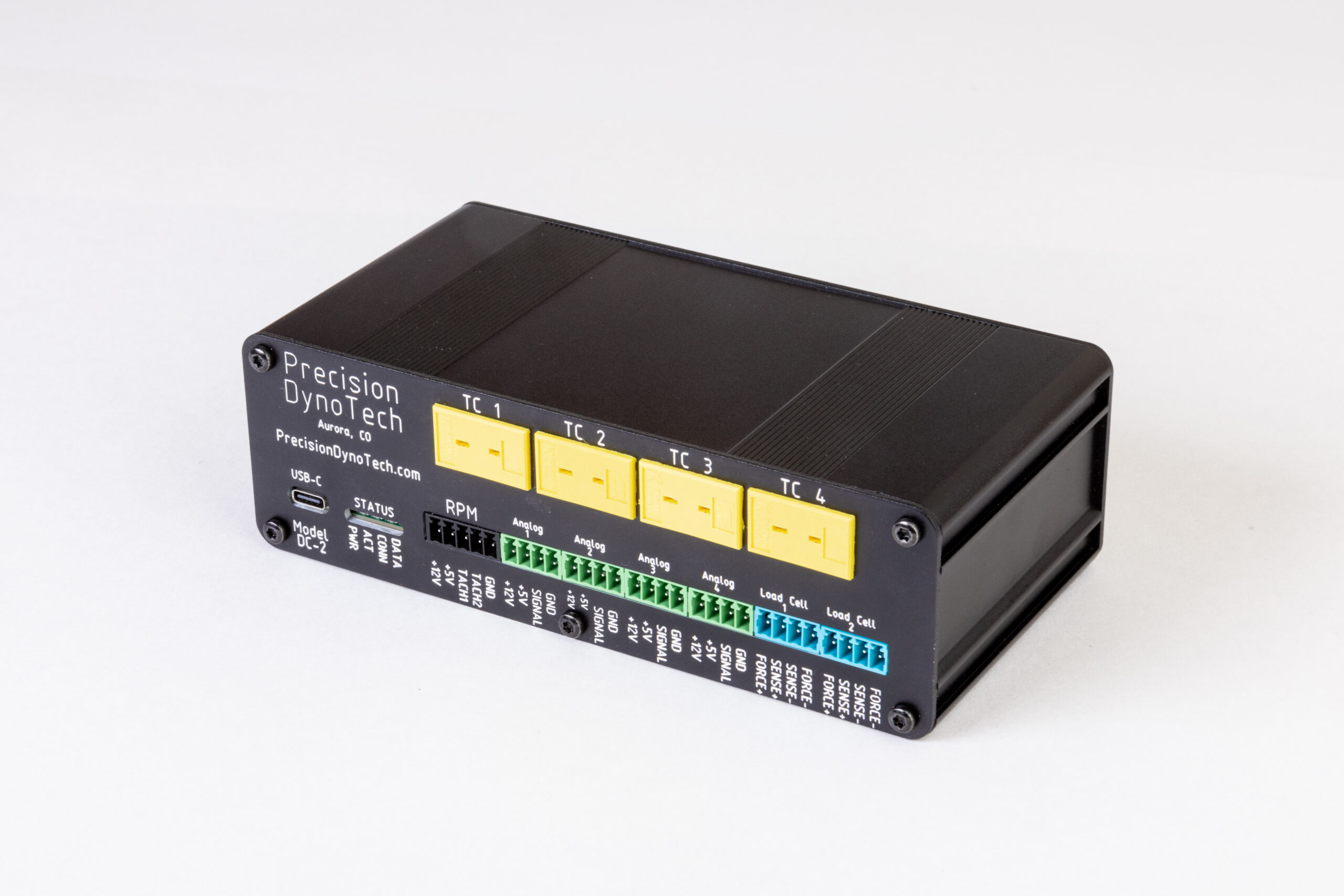

- Color coded connectors for easy installation
- Durable Anodized Aluminum Case
- USB-C connection to interface with a PC running Windows.

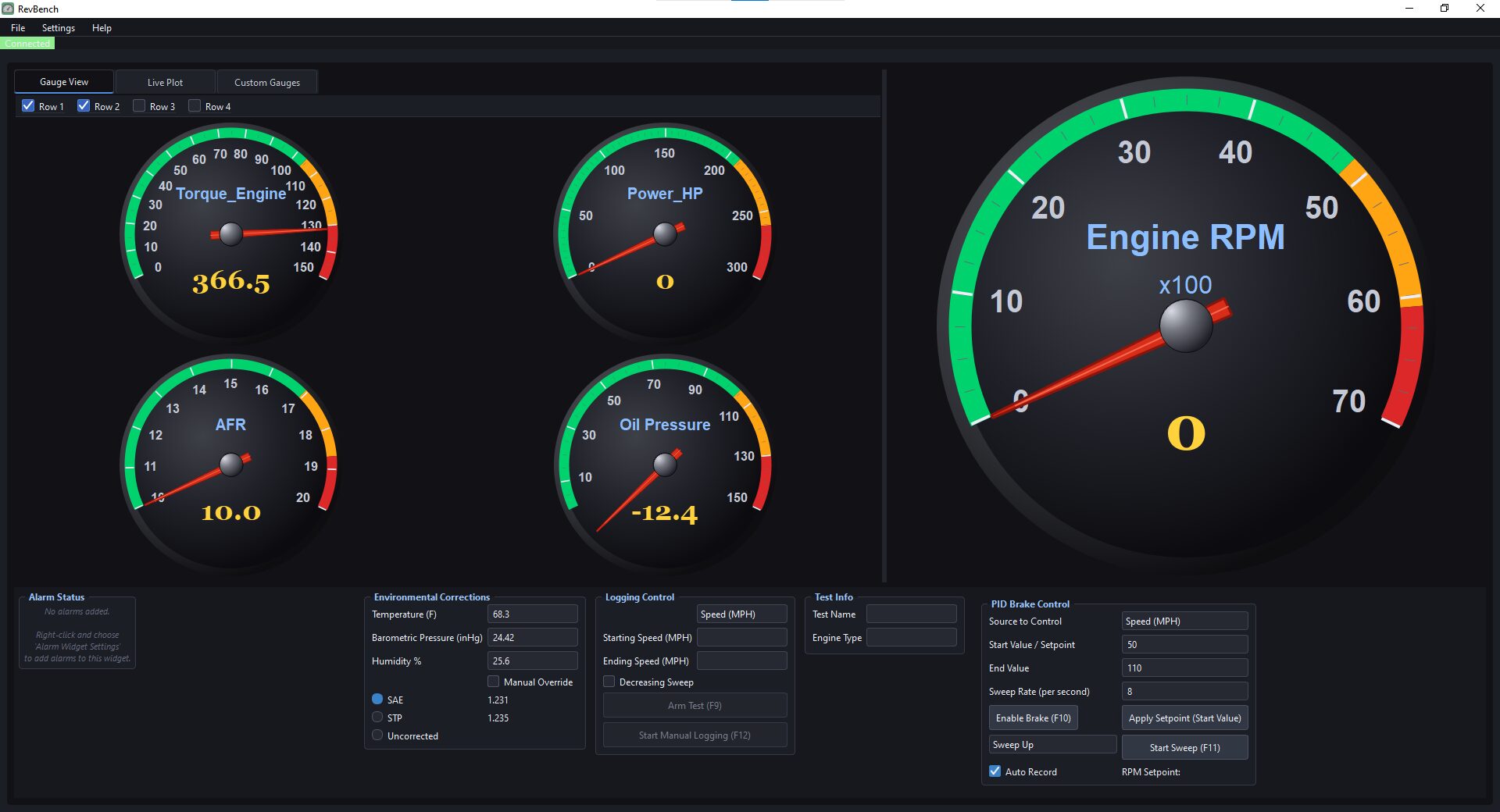

- Includes Precision DynoTech “RevBench” Software
- Correction factor calculations based on user input atmosphere settings
- STP, SAEJ1349, or Uncorrected
- Complete data logging of all channels
- Can start manual logging (user start and stop)
- Automatic logging based on starting and ending RPM values

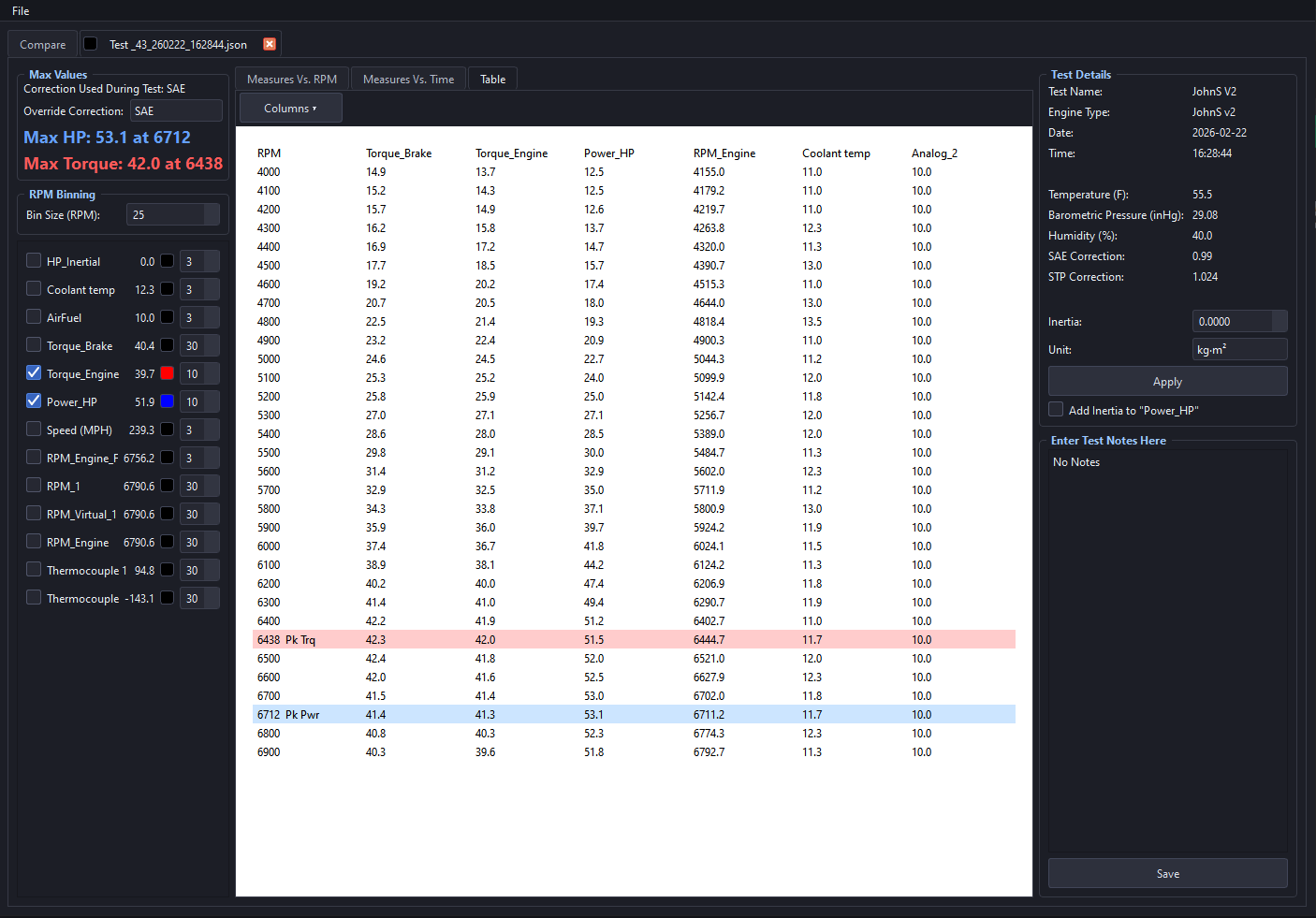

- Data viewer to view all channels

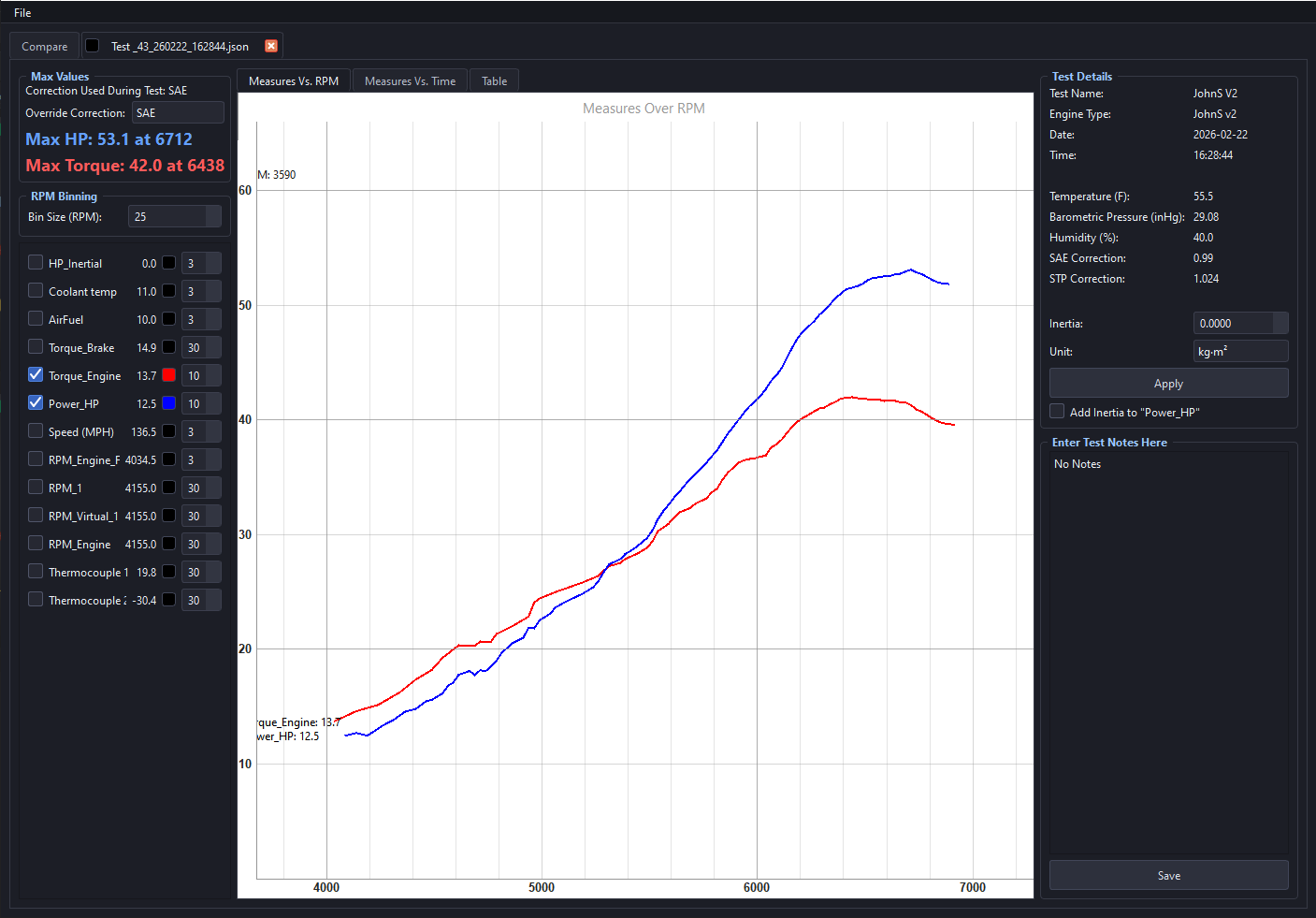

- View data channels over time and over RPM

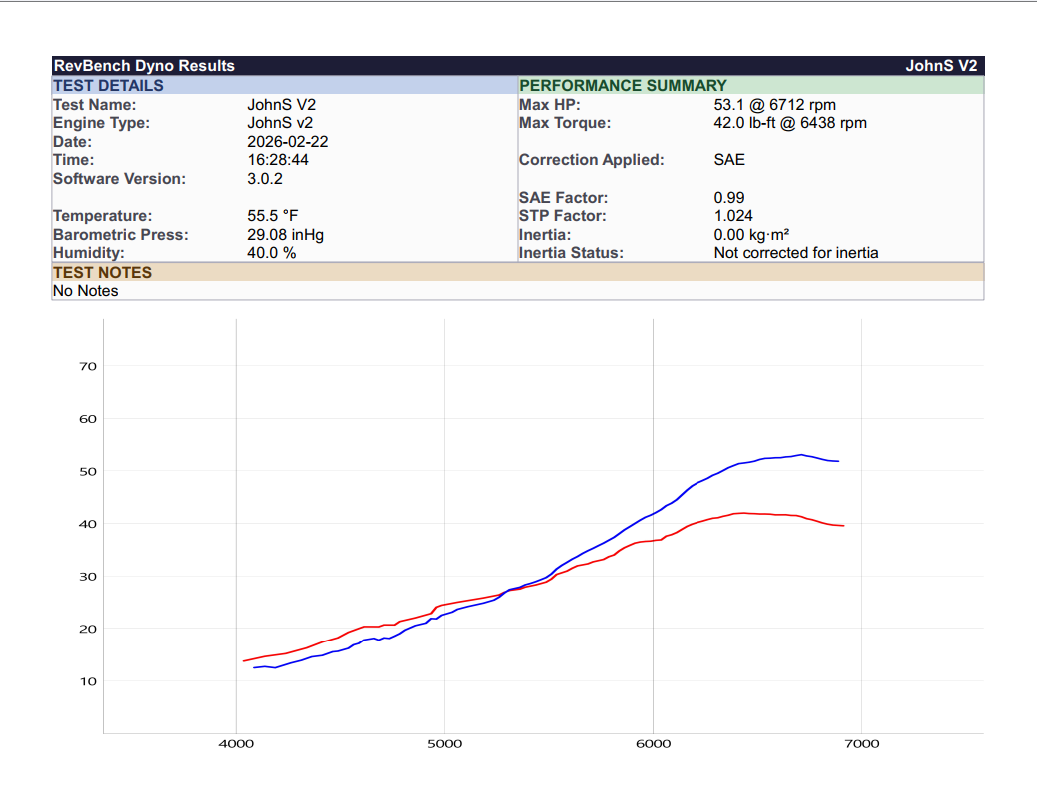

- Printing of saved tests
- Includes max power, torque, corrections, and user-defined notes
- Correction factor calculations based on user input atmosphere settings
