Inductive RPM Pickup and Filter

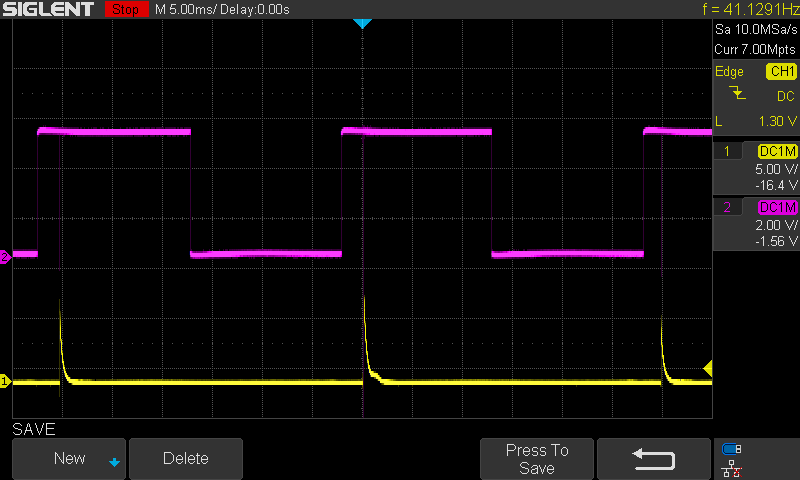

Un-filtered signals from inductive spark plug wire pickups are nearly unusable for dyno data systems.  This filter and amplifier strengthens the signal, and outputs a nicely formed square wave to be used with many different brands of dyno data acquisition systems, including YourDyno, Performance Trends DataMite, Perek, and more.  As long as your data system can accept a square wave, this filter output will be perfect.

Includes:

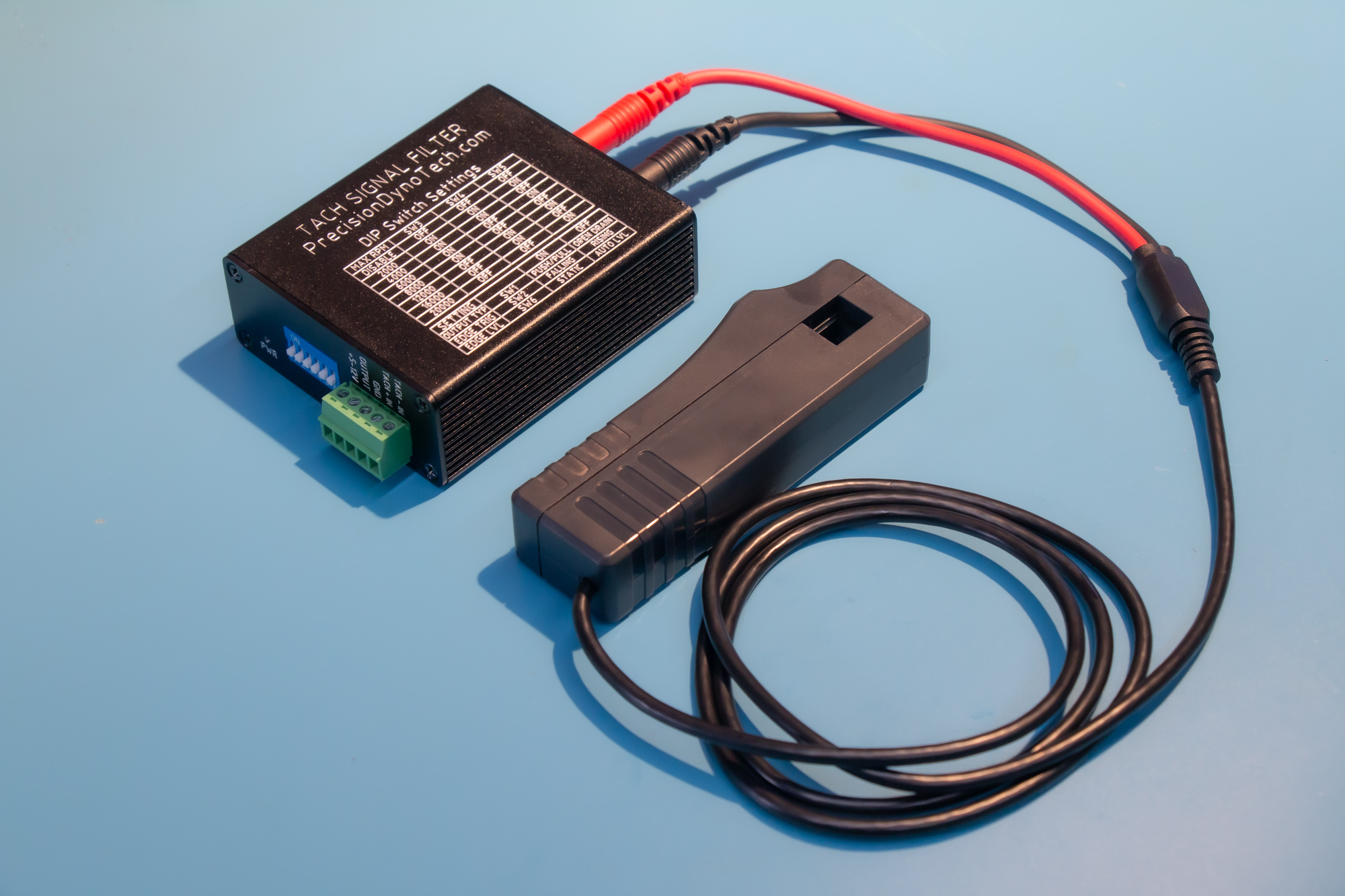

• Clamp-on inductive pickup.
• RPM Amplifier and Filter

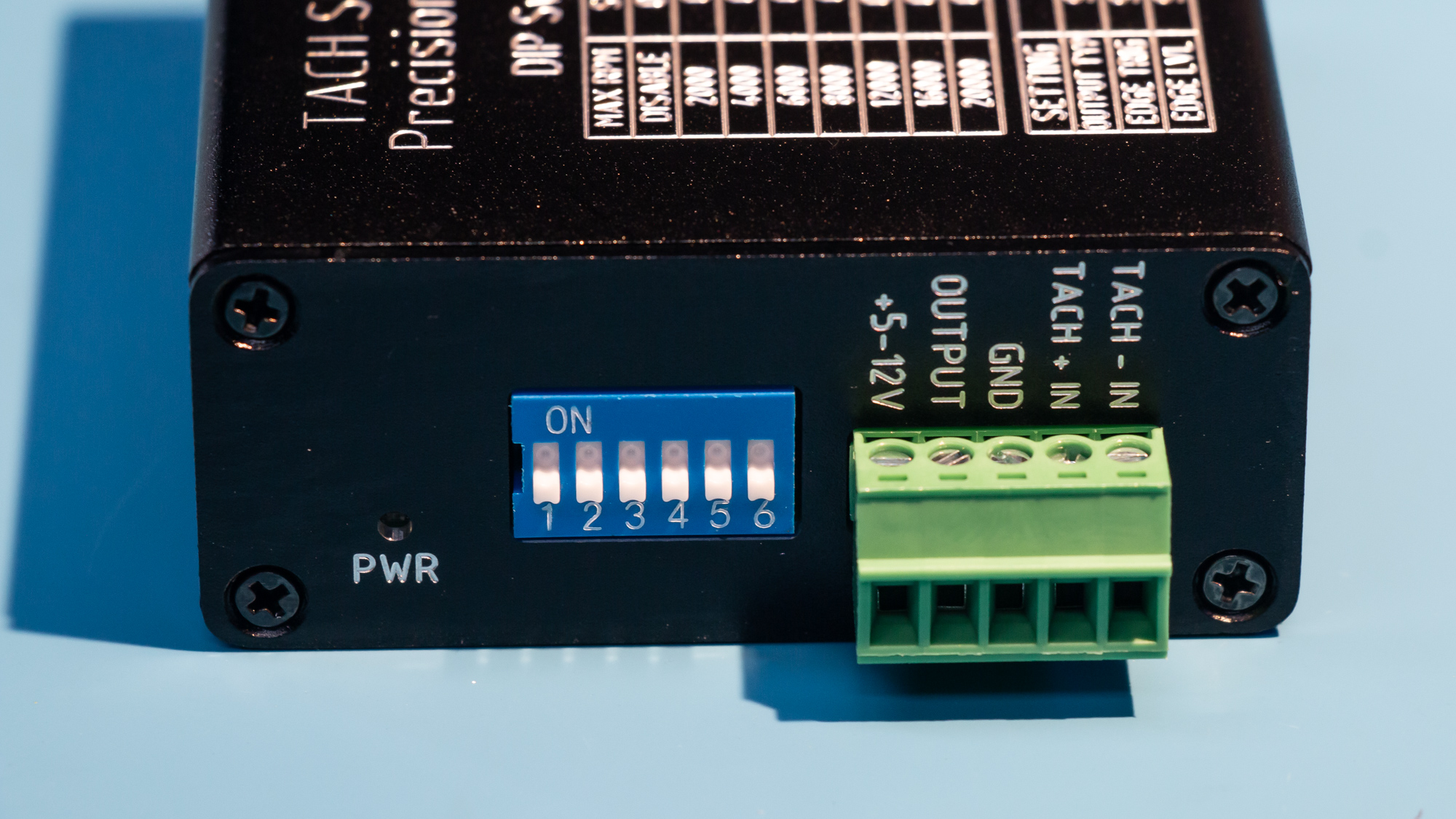

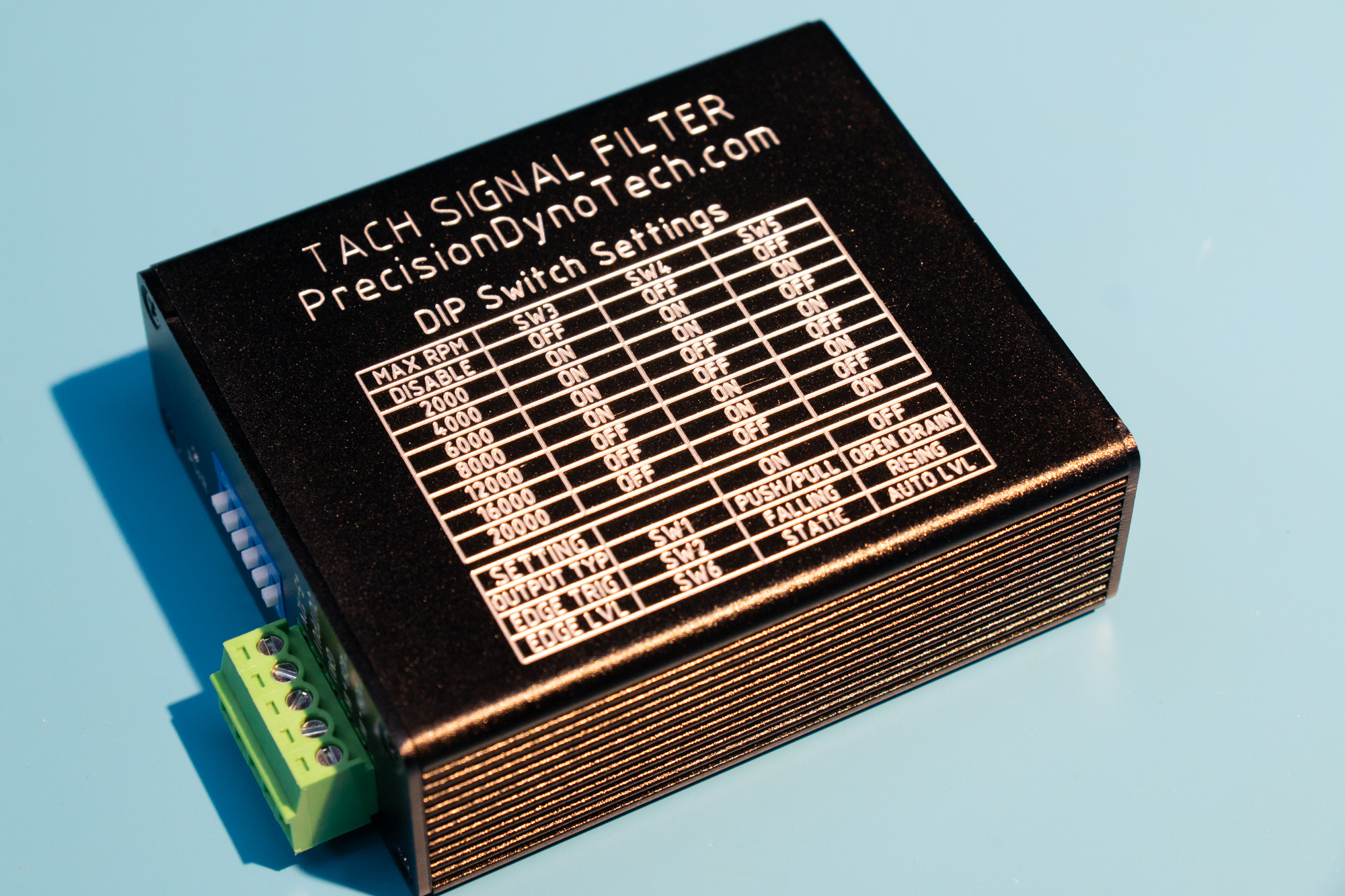

• 6 Position DIP switch for easy configuration
  • Configure a max RPM for your use, ignoring any errant signals that would otherwise cause a false signal.
  • Push-Pull or Open Drain output signal.
  • Auto-level detect based on the input signal strength

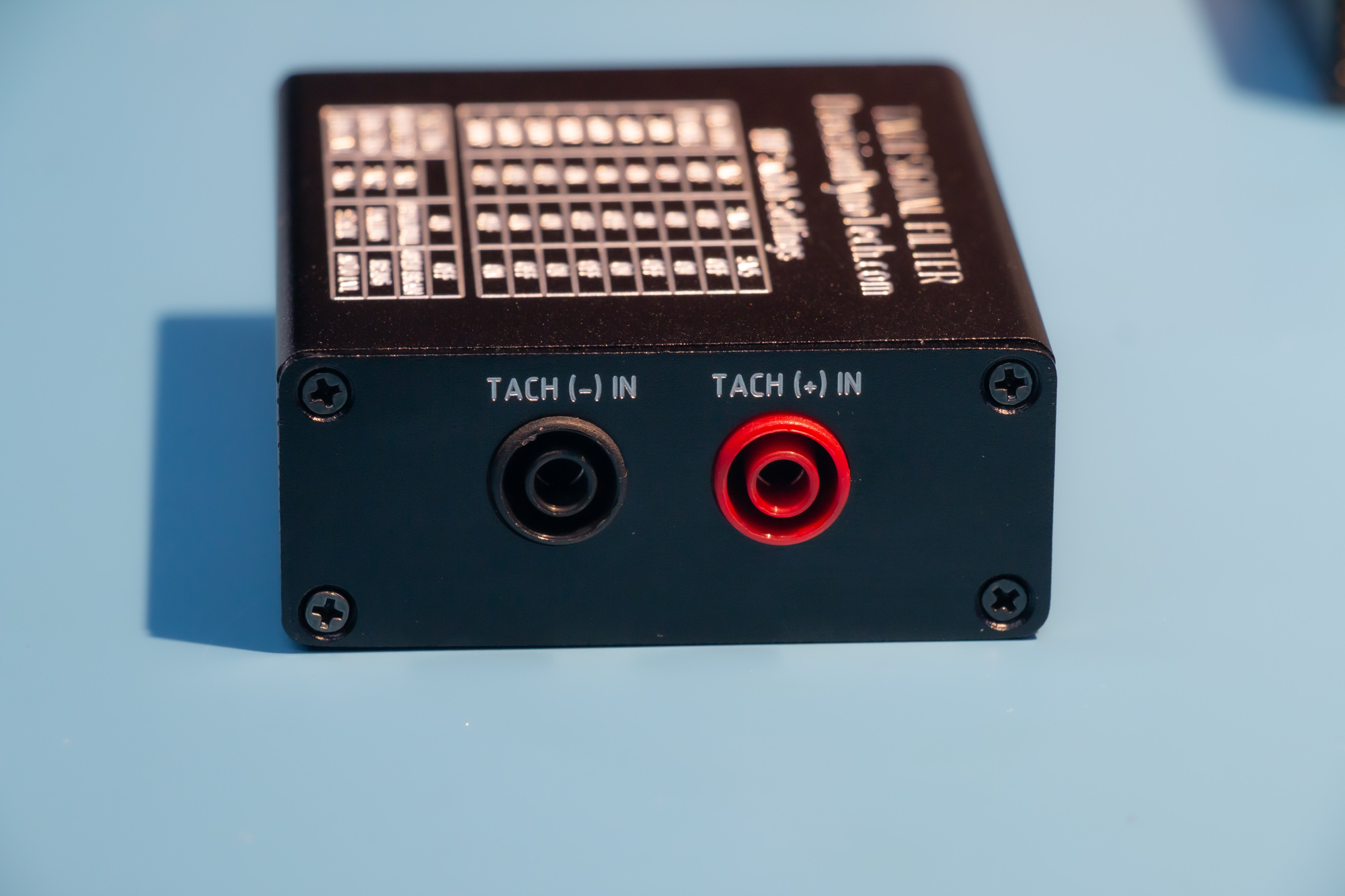

• Terminal block with optional inputs (if the clamp pickup is not used)

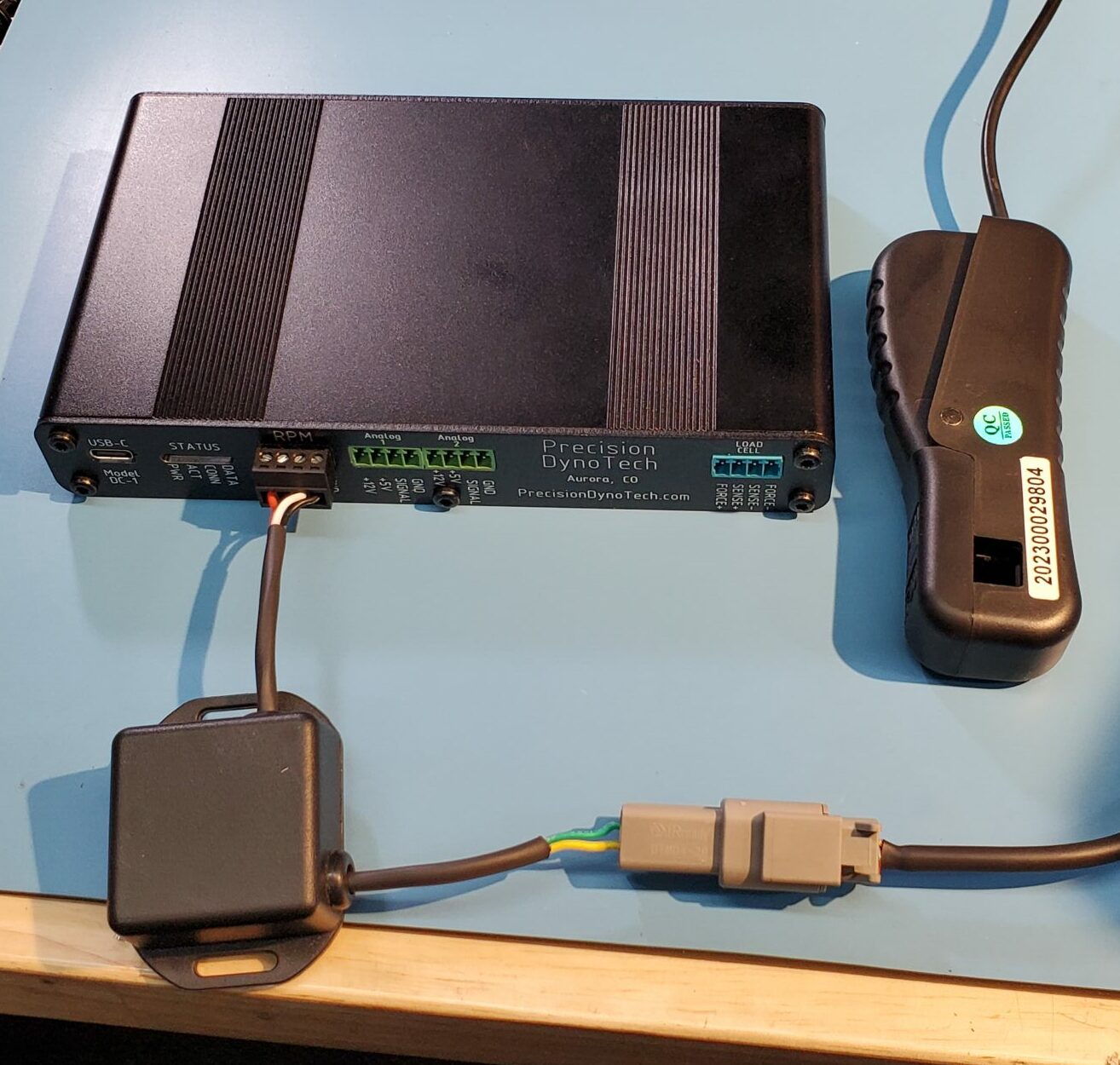

For use with external coil ignition systems.  Simply hook up the inductive clamp onto a spark plug wire, and hook up the output of the included filter circuity to an input on a Precison DynoTech data acquisition unit.  The attached filter deals with the very noisy spark plug signal and creates a clean and useable signal for many types of data systems.  This unit can be used with a variety of data systems, but Precision DynoTech cannot guarantee compatibility with all systems.

TF-2 Tach Signal Filter Manual
